Manual grape crusher stainless steel

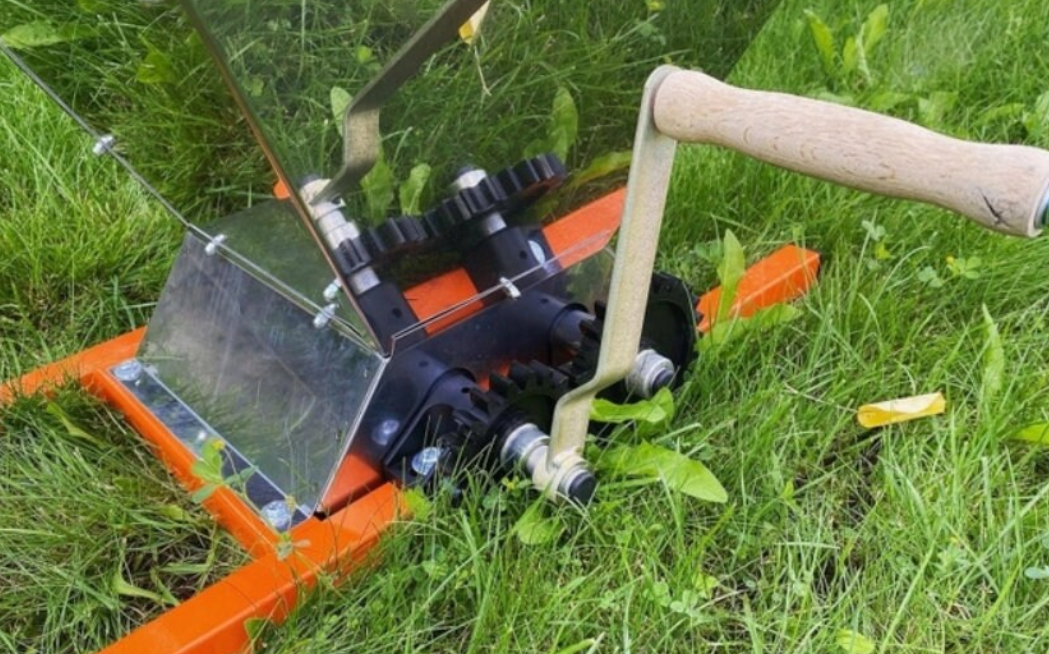

The device is designed to crush (remove internal pressure from grapes) by passing grapes between rotating rollers. This is necessary for the subsequent pressing of grape juice. The adjustable distance between the rollers allows processing grapes of different sizes. Roll diameter 100 mm Max capacity kg/h 400-600 Tank capacity, l 24 Type of control Manual Dimensions, mm 450x600x340 Weight, kg 10 Equipment set: Tank wall 4 pcs. Basket bracket 1 pcs. Tank frame 1 pcs. Drive wheel 1 pcs. Drive wheel 1 pcs. Handle 1 pcs. Shaft 2 pcs. Screw M4×6 12 pcs. Nut M4 12 pcs. Washer M4 12 pcs. Screw M6×14 4 pcs. Nut M6 4 pcs. Washer M6 8 pcs. Screw M8×10 3 pcs. Instruction manual 1 pcs. Packaging Design and working principle: Place the crusher on the container to collect juice and pulp. Virtually any container can be used as a mash collector, but preference should be given to barrels or tanks made of food contact materials. Prepare the product for processing. Cut large fruits (peaches, apricots, etc.) into pieces and remove the seeds. WARNING Large seeds can damage the grinding rollers. Place berries, fruits or vegetables to be sliced in the basket. Turn the crank clockwise to start the crusher. The flow of raw materials into the hopper must be continuous and even. Place the berries, fruits or vegetables to be chopped in the basket. Turn the crank clockwise to start the crusher. The flow of raw materials into the hopper must be continuous and even. WARNING Do not try to push pieces of food stuck between the rollers with your hands, this can cause serious injury.
